Carbon Steel T3 Transfer Pump 24Z834

Name: Carbon Steel T3 Transfer Pump 24Z834
SKU: 24Z834
Price: 2160 CAD
Availability: InStock

In stock

SKU

24Z834

$2,160.00

Quick Overview

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

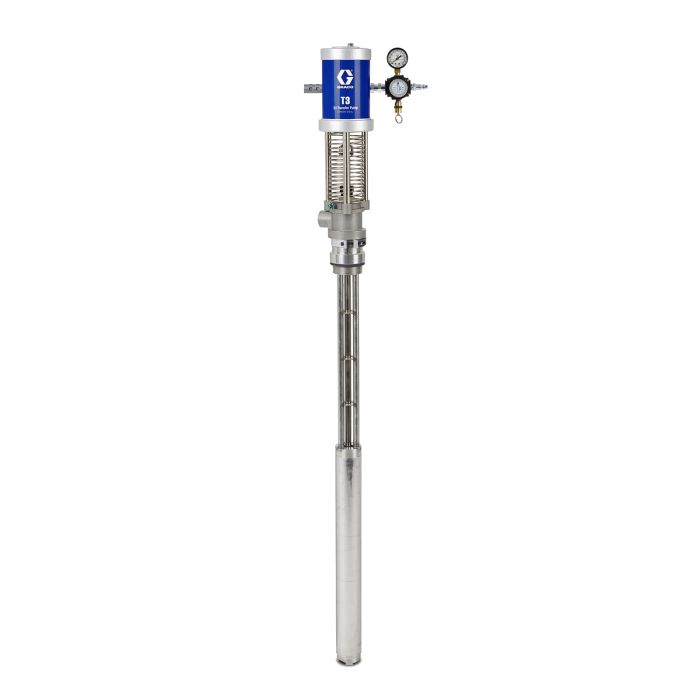

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.

Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.
More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.
Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor

More Information

More Information
Maximum Working Pressure (psi)	315
Air Inlet Size (in)	1/4
Fluid Outlet Size (in)	3/4
Maximum Air Inlet Pressure (psi)	100
Maximum Operating Temperature (\xc2\xb0F)	190
Weight (lb)	22
Maximum Working Pressure (bar)	21.7
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Maximum Working Pressure (kPa)	2170
Weight (kg)	10
Maximum Flow Rate (L/min)	17.03
Maximum Air Inlet Pressure (bar)	6.9
Maximum Air Inlet Pressure (kPa)	690
Fluid Outlet Size (cm)	1.905
Fluid Outlet Size (mm)	19.05
Maximum Operating Temperature (\xc2\xb0C)	88
