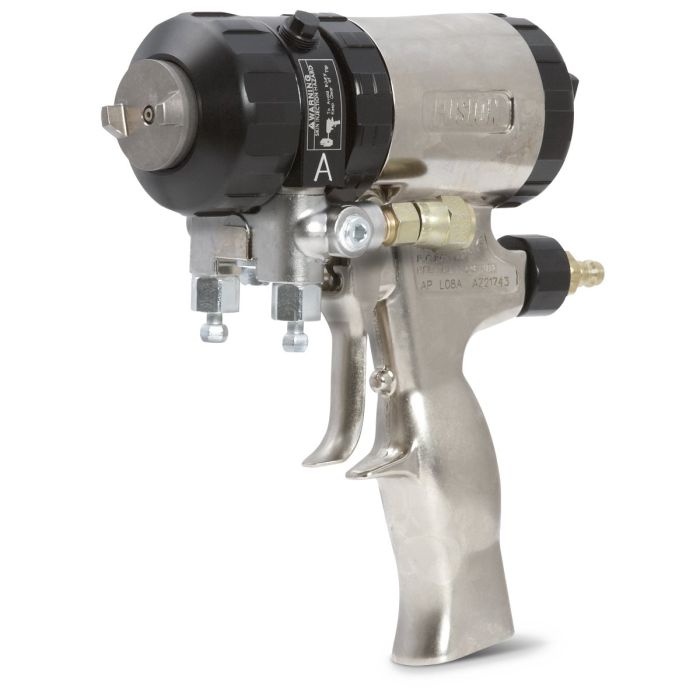

Flat Spray Fusion Air-Purge Spray Gun with 0.038 in (0.96 mm) Orifice Size 247132

Name: Flat Spray Fusion Air-Purge Spray Gun with 0.038 in (0.96 mm) Orifice Size 247132
SKU: 247132
Price: 4970 CAD
Availability: InStock

In stock

SKU

247132

$4,970.00

Quick Overview

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications.

Easy air-blast tip cleaning reduces build-up and tip clogging.
Long-lasting side seals means less downtime for maintenance
Quick-release fluid housing - lets you easily change the mix chambers without tools
Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber
Ergonomic handle

More Information

More Information
Maximum Fluid Pressure (psi)	3500
Air Inlet Size (in)	1/4
Component A Inlet Size (in)	1/2
Component B Inlet Size (in)	9/16
Fluid Orifice Size (in)	0.038
Gun Weight (lb)	2.5
Impingement Port Size (in)	0.052
Maximum Air Inlet Pressure (psi)	130
Maximum Air Pressure (psi)	130
Maximum Fluid Temperature (\xc2\xb0F)	200
Minimum Air Inlet Pressure (psi)	80
Overall Height (in)	8.1
Overall Length (in)	7.5
Overall Width (in)	3.3
Pattern Size (in)	8-10 in @ 24 in from target
Fluid Orifice Size (cm)	0.097
Fluid Orifice Size (mm)	0.97
Maximum Fluid Pressure (bar)	241
Maximum Fluid Pressure (kPa)	24100
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Component A Inlet Size (cm)	1.27
Component A Inlet Size (mm)	12.7
Gun Weight (g)	1130
Gun Weight (kg)	1.1
Maximum Fluid Temperature (\xc2\xb0C)	93
Overall Height (cm)	20.6
Overall Height (mm)	206
Overall Length (cm)	19.1
Overall Length (mm)	191
Overall Width (cm)	8.4
Overall Width (mm)	84
Maximum Air Inlet Pressure (bar)	9
Maximum Air Inlet Pressure (kPa)	900
Maximum Air Pressure (bar)	9
Maximum Air Pressure (kPa)	900
Component B Inlet Size (cm)	1.42875
Component B Inlet Size (mm)	14.2875
Minimum Air Inlet Pressure (bar)	5.5
Minimum Air Inlet Pressure (kPa)	550
Impingement Port Size (mm)	1.3
