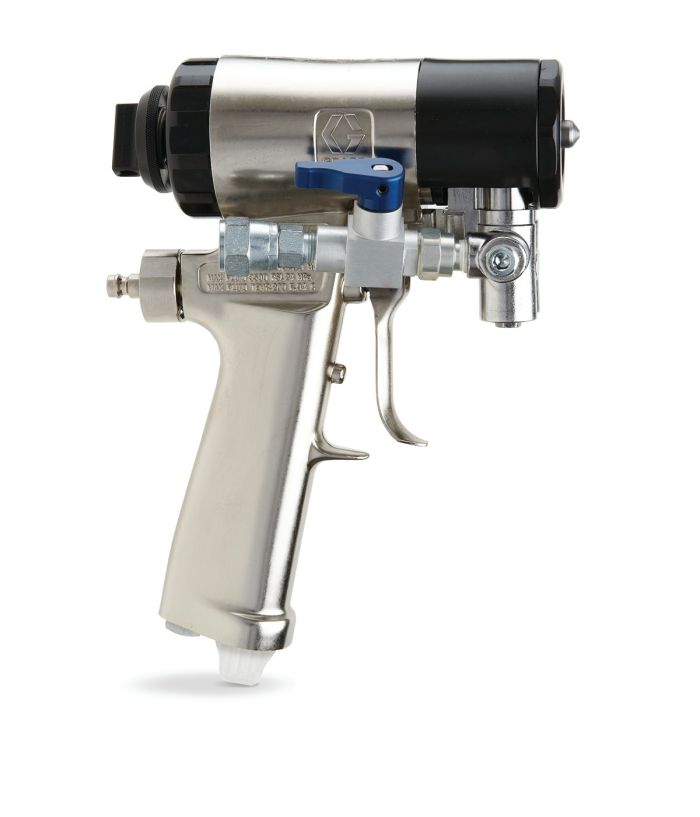

Fusion CS Gun, 18 in (457 mm) Wide Round Spray Pattern, 0.06 Mix Chamber CS03WD

Name: Fusion CS Gun, 18 in (457 mm) Wide Round Spray Pattern, 0.06 Mix Chamber CS03WD
SKU: CS03WD
Price: 5080 CAD
Availability: InStock

In stock

SKU

CS03WD

$5,080.00

Quick Overview

ClearShot Technology sets the Fusion CS gun apart from every other applicator.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

For high output spray polyurethane foam and polyurea applications.

New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
Removes foam and keeps mix chamber clear
Saves almost an hour of maintenance time each spray day
First-ever liquid purge – reduces purge air by 75% and minimizes foam blowback
Easy-to-insert cartridge fits into ergonomic handle
Variable flow - an industry first
- First plural-component gun with variable flow
- Switch from large to small spray patterns in seconds
- Gives you more maneuverability to spray in small, tight areas
- Ten different settings
Quick-change front - simpler and cleaner
- Swap out fluid heads in seconds
- Non-stick polymer cover keeps gun head cleaner
- "Air knife" reduces material build-up
- Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

More Information

More Information
Maximum Fluid Pressure (psi)	3500
Air Inlet Size (in)	1/4
Component A Inlet Size (in)	1/2-20
Component B Inlet Size (in)	9/16-18
Fluid Orifice Size (in)	0.057
Gun Weight (lb)	2.6
Impingement Port Size (in)	0.06
Maximum Air Inlet Pressure (psi)	130
Maximum Air Pressure (psi)	130
Maximum Flow Rate (lb/min)	25
Maximum Flow Rate @ PSI (lb/min)	25
Maximum Fluid Temperature (\xc2\xb0F)	200
Maximum Fluid Working Pressure (psi)	3500
Minimum Air Inlet Pressure (psi)	80
Minimum Flow Rate (lb/min)	1
Overall Height (in)	8.1
Overall Length (in)	7.5
Overall Width (in)	3.3
Pattern Size (in)	18 in @ 24 in from target
Fluid Orifice Size (cm)	0.145
Fluid Orifice Size (mm)	1.45
Maximum Fluid Pressure (bar)	241
Maximum Fluid Pressure (kPa)	24100
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Component A Inlet Size (cm)	1.27
Component A Inlet Size (mm)	12.7
Gun Weight (g)	1180
Gun Weight (kg)	1.18
Maximum Fluid Temperature (\xc2\xb0C)	93
Overall Height (cm)	21
Overall Height (mm)	206
Overall Length (cm)	19
Overall Length (mm)	191
Overall Width (cm)	8
Overall Width (mm)	84
Pattern Size (mm)	457.2
Maximum Air Inlet Pressure (bar)	9
Maximum Air Inlet Pressure (kPa)	900
Maximum Air Pressure (bar)	9
Maximum Air Pressure (kPa)	900
Maximum Fluid Working Pressure (bar)	245
Component B Inlet Size (cm)	1.42875
Component B Inlet Size (mm)	14.2875
Minimum Air Inlet Pressure (bar)	5.5
Minimum Air Inlet Pressure (kPa)	550
Maximum Flow Rate (kg/min)	11.3
Minimum Flow Rate (kg/min)	0.45
Impingement Port Size (mm)	1.5
