GRACO GUN,FUSION CS,RD2020 CS20RD

Name: GRACO GUN,FUSION CS,RD2020 CS20RD
SKU: CS20RD
Price: 5080 CAD
Availability: InStock

In stock

SKU

CS20RD

$5,080.00

Quick Overview

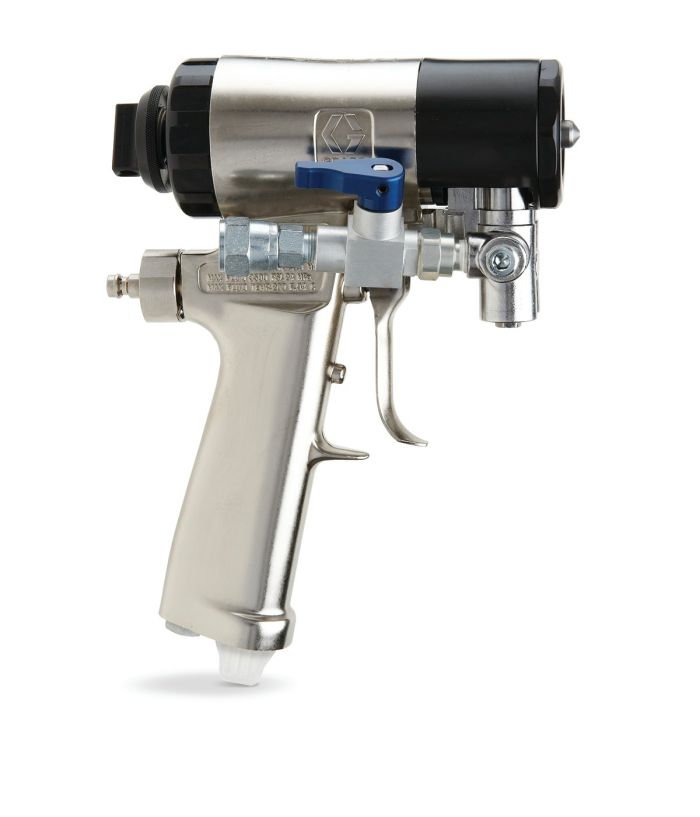

GRACO Fusion CS Gun CS20RD

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

GUN,FUSION CS,RD2020

More Information

More Information
Maximum Fluid Pressure (psi)	3500
Air Inlet Size (in)	1/4
Component A Inlet Size (in)	1/2-20
Component B Inlet Size (in)	9/16-18
Fluid Orifice Size (in)	0.02
Gun Weight (lb)	2.6
Impingement Port Size (in)	0.02
Maximum Air Inlet Pressure (psi)	130
Maximum Air Pressure (psi)	130
Maximum Flow Rate (lb/min)	25
Maximum Flow Rate @ PSI (lb/min)	25
Maximum Fluid Temperature (\xc2\xb0F)	200
Maximum Fluid Working Pressure (psi)	3500
Minimum Air Inlet Pressure (psi)	80
Minimum Flow Rate (lb/min)	1
Overall Height (in)	8.1
Overall Length (in)	7.5
Overall Width (in)	3.3
Pattern Size (in)	5 in @ 24 in from target
Fluid Orifice Size (cm)	0.051
Fluid Orifice Size (mm)	0.51
Maximum Fluid Pressure (bar)	241
Maximum Fluid Pressure (kPa)	24100
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Component A Inlet Size (cm)	1.27
Component A Inlet Size (mm)	12.7
Gun Weight (g)	1180
Gun Weight (kg)	1.18
Maximum Fluid Temperature (\xc2\xb0C)	93
Overall Height (cm)	21
Overall Height (mm)	206
Overall Length (cm)	19
Overall Length (mm)	191
Overall Width (cm)	8
Overall Width (mm)	84
Maximum Air Inlet Pressure (bar)	9
Maximum Air Inlet Pressure (kPa)	900
Maximum Air Pressure (bar)	9
Maximum Air Pressure (kPa)	900
Maximum Fluid Working Pressure (bar)	245
Component B Inlet Size (cm)	1.42875
Component B Inlet Size (mm)	14.2875
Minimum Air Inlet Pressure (bar)	5.5
Minimum Air Inlet Pressure (kPa)	550
Maximum Flow Rate (kg/min)	11.3
Minimum Flow Rate (kg/min)	0.45
Impingement Port Size (mm)	0.5
