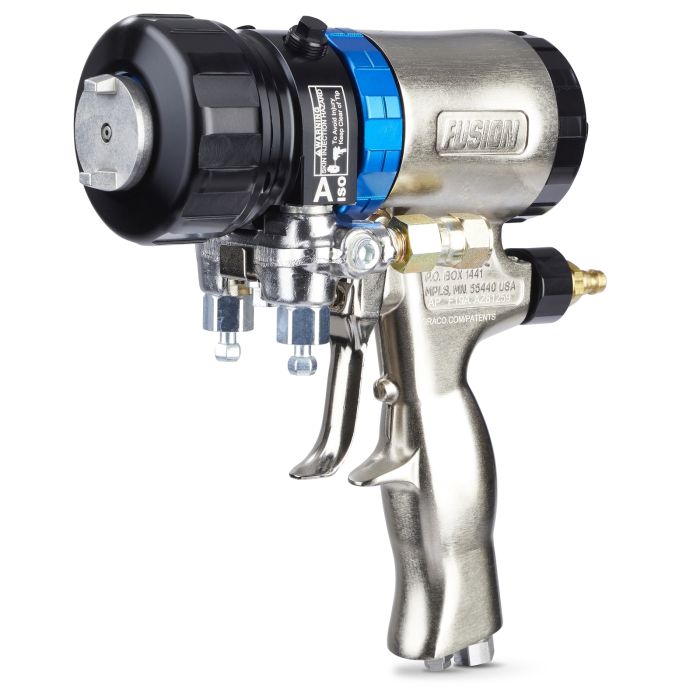

Fusion ProConnect Gun without Mix Chamber 25P591

Name: Fusion ProConnect Gun without Mix Chamber 25P591
SKU: 25P591
Price: 4460 CAD
Availability: InStock

In stock

SKU

25P591

$4,460.00

Quick Overview

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime. This gun can be combined with any Fusion PC mix chamber (sold separately).

Unlike any other spray foam gun available

A single cartridge replaces the entire fluid section in seconds
Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
13 parts are replaced by a single ProConnect cartridge
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns
Retrofit Kit available to convert existing Fusion AP guns

More Information

More Information
Maximum Fluid Temperature (F)	200
Maximum Fluid Pressure (psi)	3500
Air Inlet Size (in)	43834
Component A Inlet Size (in)	43832
Component B Inlet Size (in)	43359
Fluid Orifice Size (in)	0.042
Gun Weight (lb)	2.95
Maximum Air Inlet Pressure (psi)	130
Maximum Air Pressure (psi)	130
Maximum Flow Rate @ PSI (lb/min)	50
Maximum Fluid Working Pressure (psi)	3500
Minimum Air Inlet Pressure (psi)	80
Overall Height (in)	8.1
Overall Length (in)	8
Overall Width (in)	3.3
Pattern Size (in)	NA
Fluid Orifice Size (cm)	0.107
Fluid Orifice Size (mm)	1.07
Maximum Fluid Temperature (C)	93
Maximum Fluid Pressure (bar)	241
Maximum Fluid Pressure (kPa)	24100
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Component A Inlet Size (cm)	1.27
Component A Inlet Size (mm)	12.7
Gun Weight (g)	1338
Gun Weight (kg)	1.3
Overall Height (cm)	20.6
Overall Height (mm)	206
Overall Length (cm)	20.3
Overall Length (mm)	203
Overall Width (cm)	8.4
Overall Width (mm)	84
Pattern Size (mm)	NA
Maximum Air Inlet Pressure (bar)	9
Maximum Air Inlet Pressure (kPa)	900
Maximum Air Pressure (bar)	9
Maximum Air Pressure (kPa)	900
Maximum Fluid Working Pressure (bar)	245
Minimum Air Inlet Pressure (bar)	5.5
Minimum Air Inlet Pressure (kPa)	550
