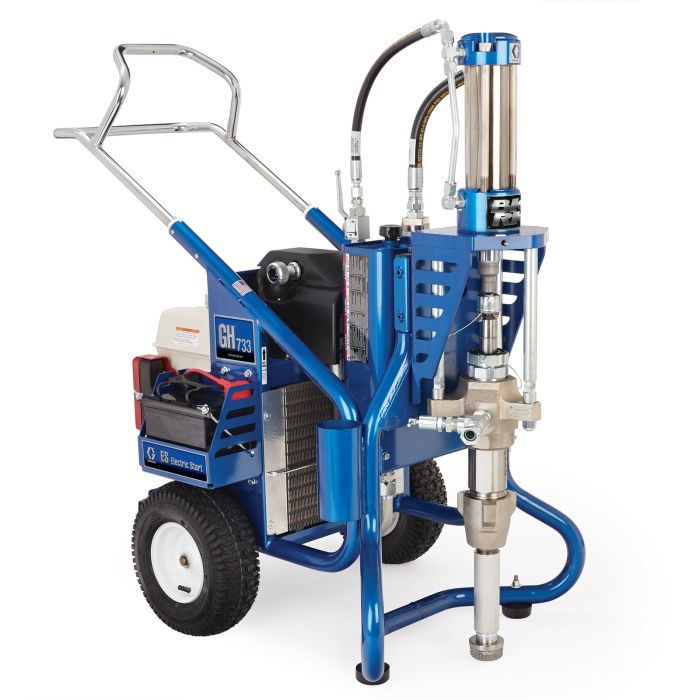

GH 733ES Gas Hydraulic Sprayer, Big 250 System 16U778

Name: GH 733ES Gas Hydraulic Sprayer, Big 250 System 16U778
SKU: 16U778
Price: 33830 CAD
Availability: InStock

In stock

SKU

16U778

$33,830.00

Quick Overview

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 733 can get the job done.

Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
Xtreme Pump
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuickAccess intake valve removes easily for fast repairs
Ready-To-Spray Big 250 System
- Configured with 250 feet of pressure-rated hose, gun, tip extensions, and all the fittings you will need
Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose

More Information

More Information
Maximum Working Pressure (psi)	4000
Maximum Hose Length (ft)	250
Maximum Tip Size 1 Gun (in)	0.065
Maximum Tip Size (in)	0.065
Maximum Working Pressure (bar)	276
Maximum Working Pressure (kPa)	27600
Maximum Flow Rate (L/min)	15.1
Maximum Hose Length (m)	76
Maximum Tip Size (cm)	0.1651
Maximum Tip Size (mm)	1.651
Maximum Tip Size 1 Gun (cm)	0.1651
Maximum Tip Size 1 Gun (mm)	1.651
Power Rating (cc)	390
