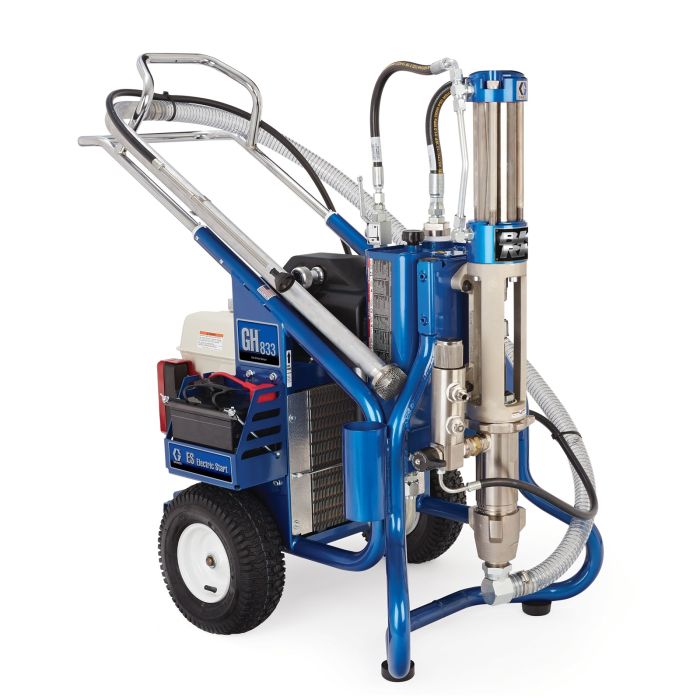

GH 833ES Big Rig Gas Hydraulic Sprayer, Bare 16U287

Name: GH 833ES Big Rig Gas Hydraulic Sprayer, Bare 16U287
SKU: 16U287
Price: 26780 CAD
Availability: InStock

In stock

SKU

16U287

$26,780.00

Quick Overview

The GH 833ES is the preferred choice for high production professional contractors who spray the wide range of materials.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

The GH 833ES is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.

Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
MaxLife Endurance Pump
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
Flow-Through Filter System
- Inside/out design eliminates clogged filters
- Eliminates tip clogs

More Information

More Information
Maximum Working Pressure (psi)	4000
Fluid Inlet Size (in)	1-1/2 to 11-1/2
Fluid Outlet Size (in)	1 to 11-1/2
Maximum Hose Length (ft)	50
Maximum Tip Size 1 Gun (in)	0.065
Maximum Tip Size 2 Guns (in)	0.046
Maximum Tip Size 3 Guns (in)	0.037
Maximum Tip Size 4 Guns (in)	0.032
Maximum Tip Size 5 Guns (in)	0.029
Maximum Tip Size 6 Guns (in)	0.026
Maximum Tip Size (in)	0.065
Weight (lb)	398
Maximum Working Pressure (bar)	275.8
Maximum Working Pressure (kPa)	27580
Weight (kg)	181
Maximum Flow Rate (L/min)	15.1
Maximum Hose Length (m)	15
Maximum Tip Size (cm)	0.1651
Maximum Tip Size (mm)	1.651
Maximum Tip Size 1 Gun (cm)	0.1651
Maximum Tip Size 1 Gun (mm)	1.651
Maximum Tip Size 2 Guns (cm)	0.1168
Maximum Tip Size 2 Guns (mm)	1.1684
Maximum Tip Size 3 Guns (cm)	0.094
Maximum Tip Size 3 Guns (mm)	0.9398
Power Rating (cc)	390
Maximum Tip Size 4 Guns (cm)	0.0813
Maximum Tip Size 4 Guns (mm)	0.8128
Maximum Tip Size 5 Guns (cm)	0.0737
Maximum Tip Size 5 Guns (mm)	0.7366
Maximum Tip Size 6 Guns (cm)	0.066
Maximum Tip Size 6 Guns (mm)	0.6604
