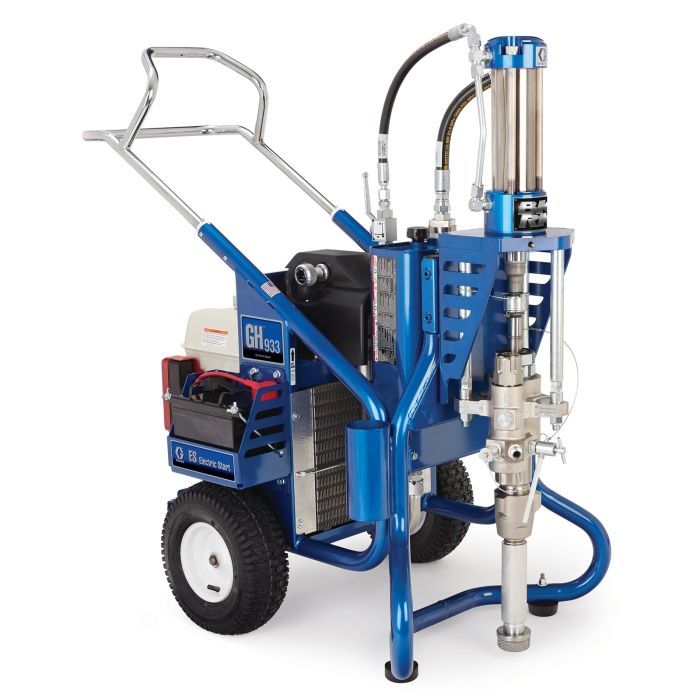

GH 933ES Hi Flo Big Rig Gas Hydraulic Sprayer, Complete 17B485

Name: GH 933ES Hi Flo Big Rig Gas Hydraulic Sprayer, Complete 17B485
SKU: 17B485
Price: 32310 CAD
Availability: InStock

In stock

SKU

17B485

$32,310.00

Quick Overview

Equipped with Graco’s proven Xtreme pump lower with durable Tuff-Stack packings, the GH 933ES Hi Flo Big Rig Complete sprayer features oversized outlets and a filter-less design for maximum flow and performance while providing 50 ft of pressure-rated hose and everything you need to start spraying.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

Optimized for Silicon and other Heavy Bodied Materials

Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
XHF Gun
- Designed specifically for spraying viscous materials at high flow rates
Ready-To-Spray Complete System
- Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose

More Information

More Information
Maximum Working Pressure (psi)	7250
Maximum Hose Length (ft)	50
Maximum Tip Size 1 Gun (in)	0.053
Maximum Tip Size (in)	0.053
Maximum Working Pressure (bar)	500
Maximum Working Pressure (kPa)	50000
Maximum Flow Rate (L/min)	36
Maximum Hose Length (m)	15
Maximum Tip Size (cm)	0.1346
Maximum Tip Size (mm)	1.3462
Maximum Tip Size 1 Gun (cm)	0.1346
Maximum Tip Size 1 Gun (mm)	1.3462
Power Rating (cc)	390
