Husky 1050 Diaphragm Pump with Drum Riser Tube 246368

Name: Husky 1050 Diaphragm Pump with Drum Riser Tube 246368
SKU: 246368
Price: 2850 CAD
Availability: InStock

In stock

SKU

246368

$2,850.00

Quick Overview

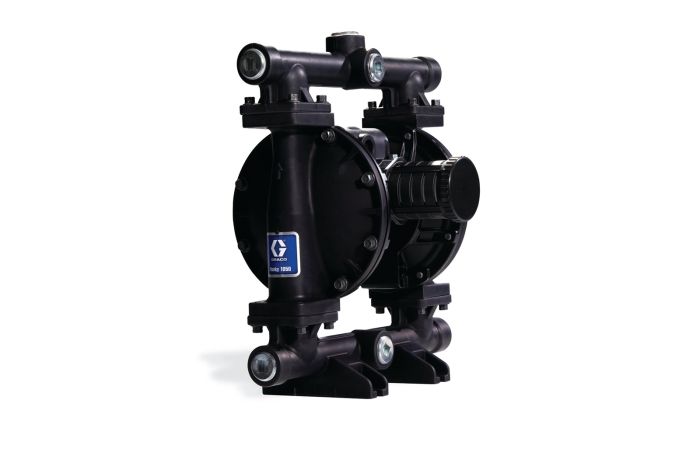

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Longer Diaphragm Life
- Up to 5x longer diaphragm life for less maintenance and downtime
Modular Air Valve
- Stall-free, low pulsation operation provides smooth and rapid changeover
One-Piece Center Section
- Eliminates air leaks for more efficient operation
Four Bolt Joint Design
- Bolted design provides even sealing pressure for leak-free operation
Multiple Ports
- Increased number of ports for installation flexibility
Optional Features
- DataTrak - Runaway protection and tracks material usage
- Pulse Output - Cycle count capability
Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
30% more efficient than the market leader
20% increase in fluid flow compared to the Husky 1040

More Information

More Information
Maximum Fluid Pressure (psi)	125
Air Exhaust Port Size (in)	3/4
Air Inlet Size (in)	1/2
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	1
Maximum Air Consumption (SCFM)	67
Maximum Air Pressure (psi)	125
Maximum Solid Size (in)	0.125
Maximum Fluid Pressure (bar)	8.6
Maximum Fluid Pressure (kPa)	860
Fluid Inlet Size (cm)	2.54
Fluid Inlet Size (mm)	25.4
Maximum Flow Rate (L/min)	34.1
Maximum Air Pressure (bar)	8.6
Maximum Air Pressure (kPa)	860
Fluid Outlet Size (cm)	2.54
Fluid Outlet Size (mm)	25.4
Maximum Solid Size (mm)	3.175
Maximum Solid Size (cm)	0.3175
