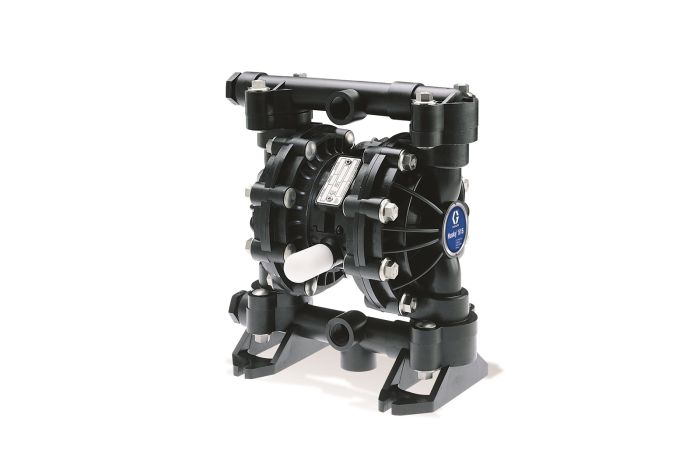

Husky 515 Diaphragm Pump 246484

Name: Husky 515 Diaphragm Pump 246484
SKU: 246484
Price: 2020 CAD
Availability: InStock

In stock

SKU

246484

$2,020.00

Quick Overview

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

More Information

More Information
Maximum Fluid Pressure (psi)	100
Air Exhaust Port Size (in)	3/8
Air Inlet Size (in)	1/4
Maximum Air Consumption (SCFM)	28
Maximum Air Pressure (psi)	100
Maximum Solid Size (in)	0.09375
Overall Height (in)	10.63
Maximum Fluid Pressure (bar)	7
Maximum Fluid Pressure (kPa)	700
Maximum Flow Rate (L/min)	56.8
Maximum Air Pressure (bar)	7
Maximum Air Pressure (kPa)	700
Maximum Solid Size (mm)	2.383
Maximum Solid Size (cm)	0.2383
