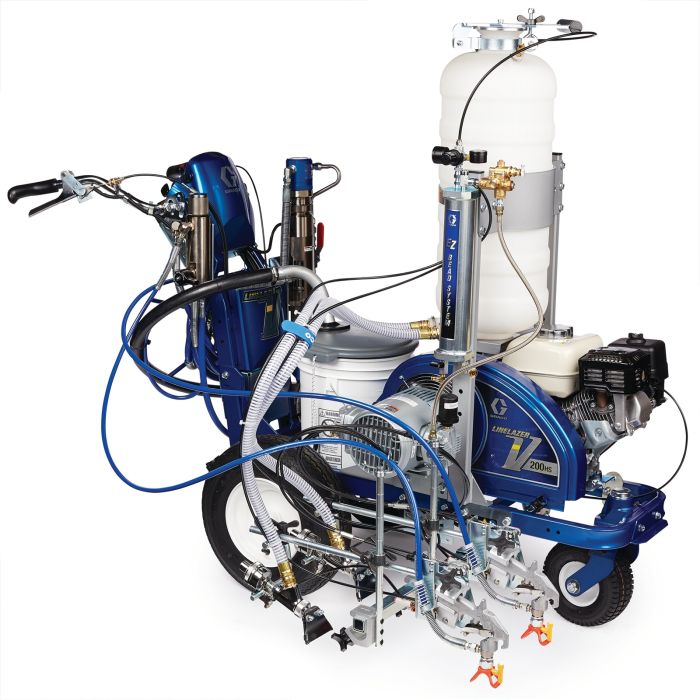

LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns 17K585

In stock
SKU
17K585
$40,140.00
Quick Overview
With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
    • Dual bead tanks hold up to 120 lbs each
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Additional Features
    • Endurance Chromex Pump
    • High-Efficiency Hydraulic Motor
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
More Information
Maximum Working Pressure (psi)3300
Bead Tank Size (lb)120
Fuel Tank Capacity (gal)0.95
Maximum Tip Size (in)0.033
Overall Height (in)44.5
Overall Length (in)68.75
Overall Width (in)34.25
Weight (lb)417
Maximum Working Pressure (bar)227
Overall Height (cm)113.03
Overall Length (cm)174.63
Overall Width (cm)87
Weight (kg)189
Maximum Flow Rate (L/min)8.14
Maximum Tip Size (mm)1.194
Fuel Tank Capacity (L)3.6
