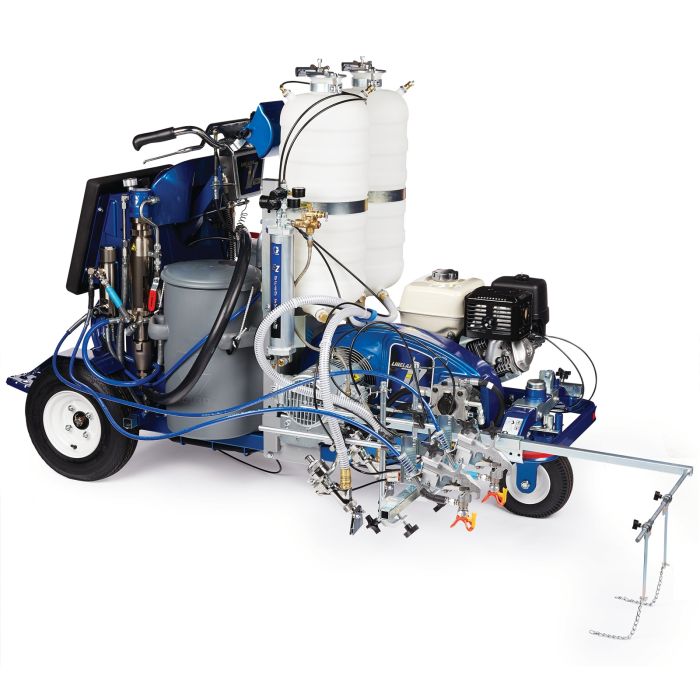

LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks 17H473

In stock
SKU
17H473
$75,170.00
Quick Overview
The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
    • Dual bead tanks hold up to 120 lbs each
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-Stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Dual 15-Gallon Paint Hoppers
    • Less Refilling
    • Simultaneously spray two colors and refill less often
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector



  • Additional Features
    • Front or Rear Gun Mount
    • Self-Centering Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter
More Information
Maximum Working Pressure (psi)3300
Bead Tank Size (lb)240
Fuel Tank Capacity (gal)1.4
Hopper Volume Capacity (gal)30
Maximum Operating Speed (mph)10
Maximum Tip Size (in)0.039
Overall Height (in)55.7
Overall Length (in)73.5
Overall Width (in)33
Weight (lb)864
Maximum Working Pressure (bar)227
Overall Height (cm)141.5
Overall Length (cm)186.7
Overall Width (cm)83.8
Weight (kg)392
Maximum Flow Rate (L/min)9.5
Fuel Tank Capacity (L)5.3
Hopper Volume Capacity (L)114
Maximum Operating Speed (km/h)16.1
