GRACO GUN, P2 (02) GCP2R2

Name: GRACO GUN, P2 (02) GCP2R2
SKU: GCP2R2
Price: 5830 CAD
Availability: InStock

In stock

SKU

GCP2R2

$5,830.00

Quick Overview

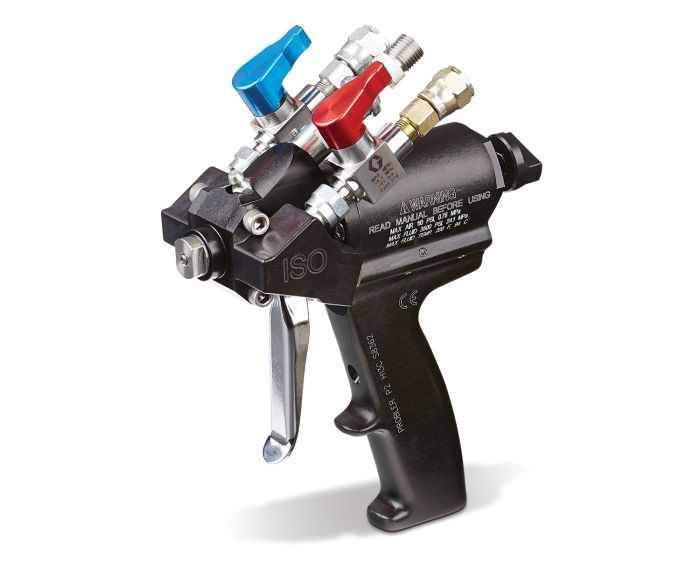

GRACO Fusion P2 Gun GCP2R2

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

GUN, P2 (02)

More Information

More Information
Maximum Fluid Pressure (psi)	3500
Air Inlet Size (in)	1/4-18
Component A Inlet Size (in)	1/2-20
Component B Inlet Size (in)	7/16-18
Fluid Orifice Size (in)	0.052
Gun Weight (lb)	3.9
Maximum Air Inlet Pressure (psi)	110
Maximum Air Pressure (psi)	110
Maximum Flow Rate (lb/min)	40
Maximum Fluid Temperature (\xc2\xb0F)	200
Maximum Fluid Working Pressure (psi)	3500
Minimum Air Inlet Pressure (psi)	90
Minimum Flow Rate (lb/min)	3
Overall Height (in)	4.75
Overall Length (in)	3.125
Overall Width (in)	6.875
Pattern Size (in)	12 in @ 24 in from target
Fluid Orifice Size (cm)	0.132
Fluid Orifice Size (mm)	1.32
Maximum Fluid Pressure (bar)	241
Maximum Fluid Pressure (kPa)	24100
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Component A Inlet Size (cm)	1.27
Component A Inlet Size (mm)	12.7
Gun Weight (g)	1770
Gun Weight (kg)	1.77
Maximum Fluid Temperature (\xc2\xb0C)	93
Overall Height (cm)	12.1
Overall Height (mm)	121
Overall Length (cm)	7.9
Overall Length (mm)	79
Overall Width (cm)	17.4
Overall Width (mm)	174
Pattern Size (mm)	304.8
Maximum Air Inlet Pressure (bar)	7.6
Maximum Air Inlet Pressure (kPa)	760
Maximum Air Pressure (bar)	7.6
Maximum Air Pressure (kPa)	760
Maximum Fluid Working Pressure (bar)	241
Component B Inlet Size (cm)	1.11125
Component B Inlet Size (mm)	11.1125
Minimum Air Inlet Pressure (bar)	6.2
Minimum Air Inlet Pressure (kPa)	620
Maximum Flow Rate (kg/min)	18
Minimum Flow Rate (kg/min)	1.4
