Reactor A-25 Bare Proportioner 262572

Name: Reactor A-25 Bare Proportioner 262572
SKU: 262572
Price: 24770 CAD
Availability: InStock

In stock

SKU

262572

$24,770.00

Quick Overview

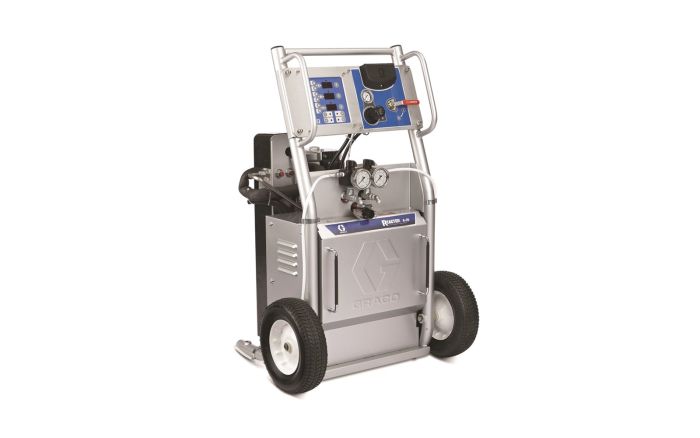

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates - resulting in better quality foam.

For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.

Maintains temperature setpoints for better yield
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain
Best choice for affordability and durability
DataTrak Control
- Resettable counter tracks material usage
Three Heat Zones
- Three independent heat zones – ISO, resin and hose heat
- Provide accurate heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controls
Recirculation Manifold
- A quick, easy way to balance system pressures
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
Quick Knockdown Lower Pumps
- For easy disassembly and maintenance

More Information

More Information
Maximum Working Pressure (psi)	2000
Air Inlet Size (in)	1/2
Component A Inlet Size (in)	3/4
Component B Inlet Size (in)	3/4
Maximum Air Consumption (SCFM)	28 scfm at 1500 psi
Maximum Air Inlet Pressure (psi)	125
Maximum Flow Rate (lb/min)	25
Maximum Fluid Temperature (\xc2\xb0F)	190
Maximum Hose Length (ft)	210
Overall Depth (in)	24.5
Overall Height (in)	43.5
Overall Width (in)	21.5
Weight (lb)	310
Maximum Working Pressure (bar)	138
Air Inlet Size (cm)	1.27
Air Inlet Size (mm)	12.7
Component A Inlet Size (mm)	19.05
Maximum Fluid Temperature (\xc2\xb0C)	88
Maximum Working Pressure (kPa)	13800
Overall Height (cm)	110.5
Overall Height (mm)	1105
Overall Depth (cm)	62.2
Overall Depth (mm)	622
Overall Width (cm)	54.6
Overall Width (mm)	546
Weight (kg)	140.6
Maximum Air Inlet Pressure (bar)	8.62
Maximum Air Inlet Pressure (kPa)	862
Maximum Hose Length (m)	64
Component B Inlet Size (mm)	19.05
Maximum Flow Rate (kg/min)	11.34
