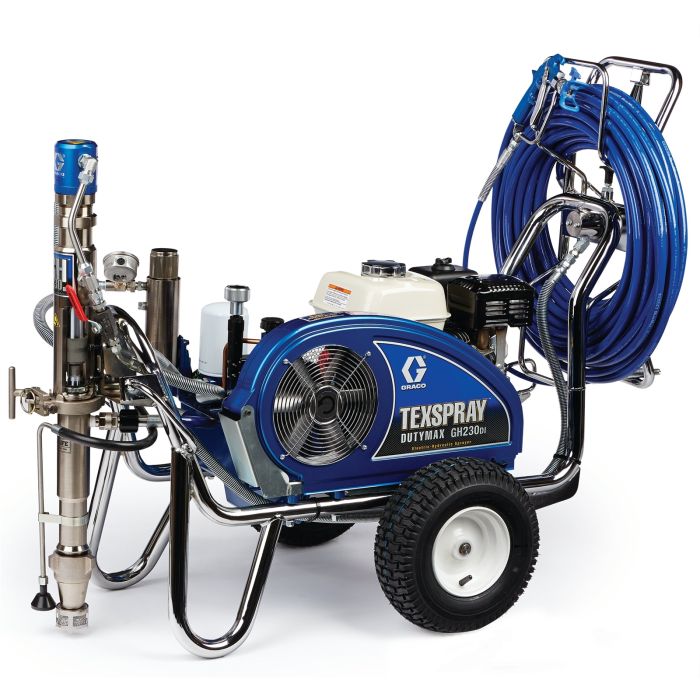

TexSpray DutyMax GH 230DI ProContractor Series Convertible Gas Hydraulic Airless Sprayer 24W962

Name: TexSpray DutyMax GH 230DI ProContractor Series Convertible Gas Hydraulic Airless Sprayer 24W962
SKU: 24W962
Price: 17050 CAD
Availability: InStock

In stock

SKU

24W962

$17,050.00

Quick Overview

When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

With features that enable you to work more efficiently and finish jobs faster, DutyMax HD ProContractor Series gas hydraulic airless sprayers spray a wide range of materials – from latex and acrylics to more heavy duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions.

Extreme-Duty Endurance MaxLife Pump
- Lasts 6X longer between repacks
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
MaxFlo 2 with Pack-Out Protection
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
High-Efficiency Hydraulic Motor
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
Honda® GX Engine
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
ProConnect 2 One-Part Pump Replacement System
- Eliminate Costly Downtime
- Swap your pump in less than 1 minute – with no tools, pins or parts to lose
QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
Crushproof Inlet Strainer
- Improved Filtration
- Stands up to harsh impacts
Electric Motor Capability
- Indoor & Outdoor Use
- Quickly swap the gas engine for an electric motor in seconds, without tools
- Electric motor sold separately
Additional Features
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Durable Cart Design

More Information

More Information
Maximum Working Pressure (psi)	3300
Fluid Inlet Size (in)	1-5/16
Fluid Outlet Size (in)	3/8
Hose Inlet Diameter (in)	3/8
Maximum Hose Length (ft)	100
Maximum Tip Size 1 Gun (in)	0.053
Maximum Tip Size (in)	0.053
Overall Height (in)	39
Overall Length (in)	52
Overall Width (in)	26.5
Volume Per Cycle (cycles/gal)	80
Weight (lb)	199
Maximum Working Pressure (bar)	227
Overall Height (cm)	99
Overall Length (cm)	132
Fluid Inlet Size (cm)	3.33
Overall Width (cm)	67
Weight (kg)	90
Maximum Flow Rate (L/min)	8.9
Maximum Hose Length (m)	30
Maximum Tip Size (cm)	0.1346
Maximum Tip Size 1 Gun (cm)	0.1346
Maximum Tip Size 1 Gun (mm)	1.3462
Fluid Outlet Size (cm)	0.375
Hose Inlet Diameter (cm)	0.95
Power Rating (cc)	200
