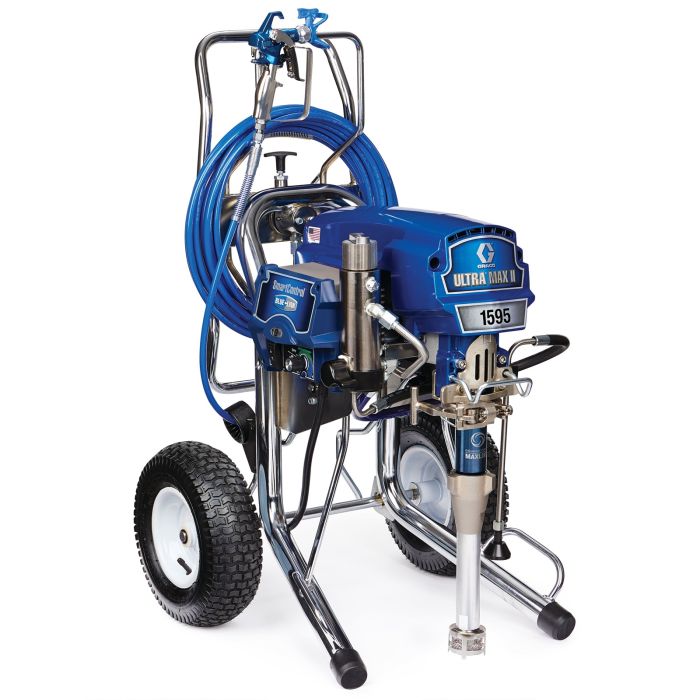

Ultra Max II 1595 ProContractor Series Electric Airless Sprayer 17E596

Name: Ultra Max II 1595 ProContractor Series Electric Airless Sprayer 17E596
SKU: 17E596
Price: 12288.9 CAD
Availability: InStock

In stock

SKU

17E596

Special Price $12,288.90 Regular Price $17,810.00

Quick Overview

The Ultra Max II 1595 ProContractor Series is Graco’s largest electric sprayer with a 2.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

The Ultra Max II 1595 ProContractor Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor, Endurance Vortex MaxLife Pumps and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.

Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes.

Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
BlueLink Job & Sprayer Management System
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
MaxPower Motor & Advantage Drive
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
ProConnect 2 Pump Replacement System
- Eliminate Costly Downtime
- Exchange pump in minutes
- Pin-less design needs no tools
FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
Additional Features
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC

More Information

More Information
Maximum Working Pressure (psi)	3300
Fluid Outlet Size (in)	1/4
Hose Inlet Diameter (in)	1/4
Maximum Tip Size 1 Gun (in)	0.039
Maximum Tip Size 2 Guns (in)	0.029
Maximum Tip Size 3 Guns (in)	0.023
Maximum Tip Size (in)	0.039
Overall Height (in)	39
Overall Length (in)	28
Overall Width (in)	24
Volume Per Cycle (cycles/gal)	110
Weight (lb)	146
Maximum Working Pressure (bar)	228
Maximum Working Pressure (kPa)	22800
Overall Height (cm)	99
Overall Height (mm)	990
Overall Length (cm)	71
Overall Length (mm)	710
Overall Width (cm)	61
Overall Width (mm)	610
Weight (kg)	66
Maximum Flow Rate (L/min)	5.1
Maximum Tip Size (cm)	0.0991
Maximum Tip Size (mm)	0.9906
Maximum Tip Size 1 Gun (cm)	0.0991
Maximum Tip Size 1 Gun (mm)	0.9906
Fluid Outlet Size (cm)	0.635
Fluid Outlet Size (mm)	6.35
Hose Inlet Diameter (cm)	0.635
Hose Inlet Diameter (mm)	6.35
Maximum Tip Size 2 Guns (cm)	0.0737
Maximum Tip Size 2 Guns (mm)	0.737
Maximum Tip Size 3 Guns (cm)	0.0584
Maximum Tip Size 3 Guns (mm)	0.584
