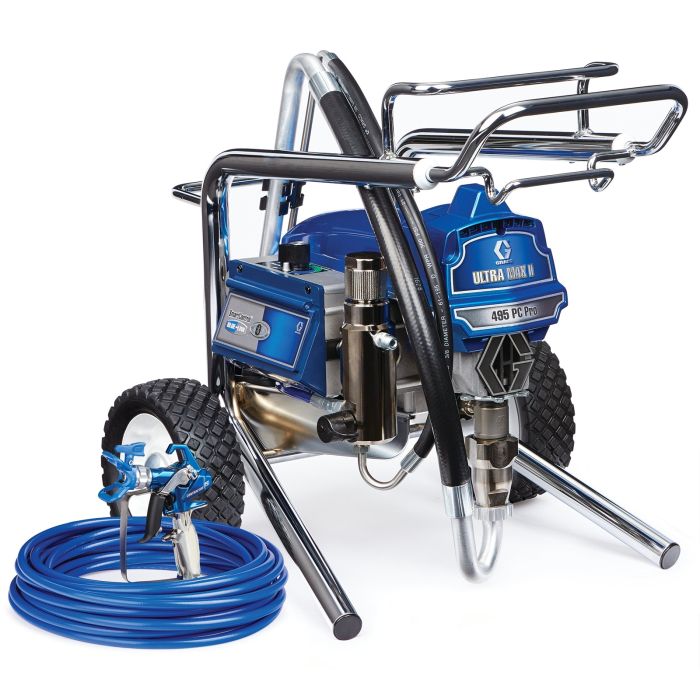

Ultra Max II 495 PC Pro Electric Airless Sprayer, Lo-Boy 17E856

Name: Ultra Max II 495 PC Pro Electric Airless Sprayer, Lo-Boy 17E856
SKU: 17E856
Price: 3387.9 CAD
Availability: InStock

In stock

SKU

17E856

Special Price $3,387.90 Regular Price $4,910.00

Quick Overview

The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing more torque, even pressure delivery and faster cleaning to finish jobs faster.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates.

Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Chromex rod and hardened stainless steel cylinder
- Long Life V-Max Blue Packings
- Faster cleaning with the QuikAccess intake valve
SmartControl 3.0
- Increased spray consistency
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer gallons, hours and pressure
- Provides support messages and diagnostic support
BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
MaxPower Motor
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
FastFlush High-Flow Cleaning System
- More spraying & less cleaning
- 4X faster cleaning with ½ the water
Easy Out Pump Filter
- Easy Maintenance & Less Clogging
- Exclusive inside-out filtering process ensures a quality finish
Convenient Bucket Hook
- Easy movement on the job without spilling
Contractor PC Spray Gun
- All-Day Comfort & Control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC

More Information

More Information
Maximum Working Pressure (psi)	3300
Fluid Outlet Size (in)	1/4
Hose Inlet Diameter (in)	1/4
Maximum Tip Size 1 Gun (in)	0.025
Maximum Tip Size (in)	0.025
Overall Height (in)	22.5
Overall Length (in)	26.5
Overall Width (in)	20
Volume Per Cycle (cycles/gal)	620
Weight (lb)	59
Maximum Working Pressure (bar)	228
Maximum Working Pressure (kPa)	22800
Overall Height (cm)	57.2
Overall Height (mm)	572
Overall Length (cm)	67.3
Overall Length (mm)	673
Overall Width (cm)	50.6
Overall Width (mm)	506
Weight (kg)	27
Maximum Flow Rate (L/min)	2.3
Maximum Tip Size (cm)	0.0635
Maximum Tip Size (mm)	0.635
Maximum Tip Size 1 Gun (cm)	0.0635
Maximum Tip Size 1 Gun (mm)	0.635
Fluid Outlet Size (cm)	0.635
Fluid Outlet Size (mm)	6.35
Hose Inlet Diameter (cm)	0.635
Hose Inlet Diameter (mm)	6.35
