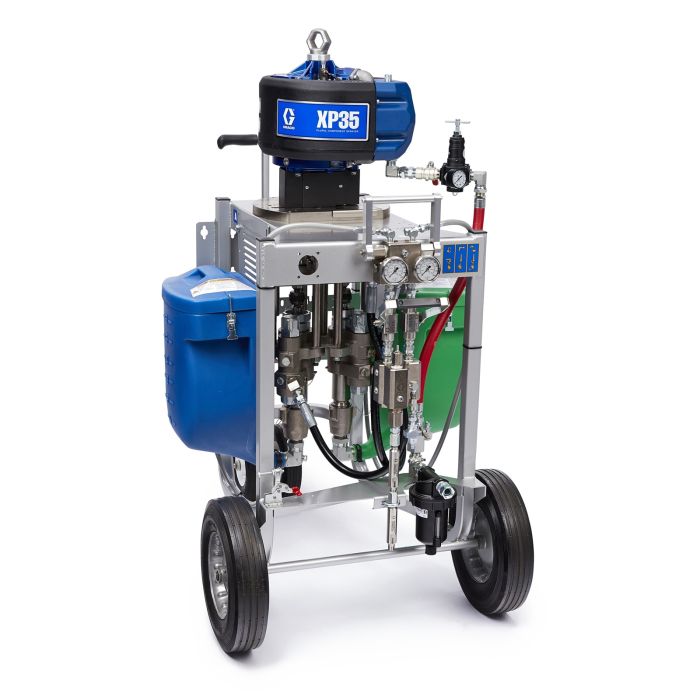

XP35 Hazardous Location Spray Package, Cart, 3:1 Mix Ratio, Hopper, XTR Gun 281302

Name: XP35 Hazardous Location Spray Package, Cart, 3:1 Mix Ratio, Hopper, XTR Gun 281302
SKU: 281302
Price: 34870 CAD
Availability: InStock

In stock

SKU

281302

$34,870.00

Quick Overview

Two-component spraying made easy and affordable.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

Two-component spraying made easy and affordable. Graco XP Plural-Component Sprayers are designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Optimized for lower-pressure airless spray applications, the Graco XP35 has similar flow capability as the XP70, but a smaller NXT 3400 air motor. The XP35 is an ideal replacement for Graco Bulldog Hydra-Cat systems.

For low pressure protective coatings applications.

Reduced material waste
No more throwing away unused mixed material at the end of the day
Save money by using less clean-up solvent
Consistent material quality - no more guesswork or human error in measuring materials
Easy to operate - minimal training required
Reduced maintenance costs
Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

More Information

More Information
Maximum Working Pressure (psi)	3500
Maximum Operating Temperature (F)	130
Maximum Fluid Temperature (F)	160
Hose Length (ft)	35
Air Inlet Size (in)	43894
Fluid Inlet Size (in)	37987
Fluid Outlet Size (in)	43832
Maximum Air Consumption (SCFM)	50 scfm/gpm at 100 psi
Maximum Air Inlet Pressure (psi)	175
Maximum Hose Length (ft)	300
Maximum Spray Pressure (psi)	3500
Overall Depth (in)	52
Overall Height (in)	62
Overall Width (in)	35
Weight (lb)	425
Maximum Working Pressure (bar)	241
Maximum Operating Temperature (C)	54
Maximum Fluid Temperature (C)	71
Hose Length (m)	10.7
Maximum Working Pressure (kPa)	24100
Overall Height (cm)	157.5
Overall Height (mm)	1575
Overall Depth (cm)	132.1
Overall Depth (mm)	1321
Overall Width (cm)	88.9
Overall Width (mm)	889
Weight (kg)	193
Maximum Flow Rate (L/min)	7.57
Maximum Air Inlet Pressure (bar)	12.07
Maximum Air Inlet Pressure (kPa)	1207
Maximum Hose Length (m)	91.4
Maximum Spray Pressure (bar)	241
Maximum Spray Pressure (kPa)	24100
